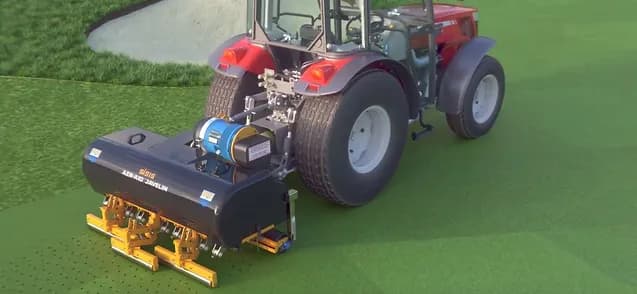

Javelin Aer-Aid 1500

Tractor mounted vertical action aerator for use on both fine and outfield turf.

Description

The Javelin Aer-Aid machine is a specially designed tractor mounted vertical action aerator for use on both fine and outfield turf. The machine can be used all year round due to the large selection of tines helping to break up compaction allowing water, air and nutrients to penetrate the root zone. Consistent use helps to produce a surface that is less affected by the adversities of weather conditions leaving minimal disturbance. The Aer-Aid system injects air directly into the root zone speeding up the aeration process, moving air uniformly throughout the root zone for complete aeration – not just where the tines have penetrated. The cam trigger mechanism ensures that the air is always expelled at the bottom of the tine penetration enabling treatment to be targeted precisely.

Features

• Minimal Surface Disturbance Depth is infinitely variable to a maximum of 127mm (5ins).
• Quick, single-lever depth setting for easy adjustment.
• Cam trigger mechanism ensures that the air is always expelled at the bottom of the tine penetration, enabling treatment to be targeted precisely and consistently.
• Working at 75mm (3ins) spacing, air is introduced at a rate of 88 litres (3cu.ft.) per minute.
• The air injection tines are specially designed to use the maximum air available from the compressor which produces clean, fresh air at a constant rate.
• Tipped tines for extra durability.
• Alternative tines for other operations such as hollow coring prior to top dressing.
• Wide working width.
• Fast forward speed for excellent productivity.
• Minimal maintenance – all bearings fully sealed and no grease nipples in the drive system.
• Quiet in operation
